Understand High and Low Voltage Switchgear in 1 Minute: The Complete Process from Voltage Conversion to Fault Protection

In the power system, high and low voltage switchgear is the core equipment to ensure electricity safety. It's like the commander of electricity, responsible for safely turning high-voltage into low-voltage and quickly protecting the entire grid if a circuit goes wrong. Today we will take you to a thorough understanding of this set of key equipment related to safety.

01. Power dispatching and conversion

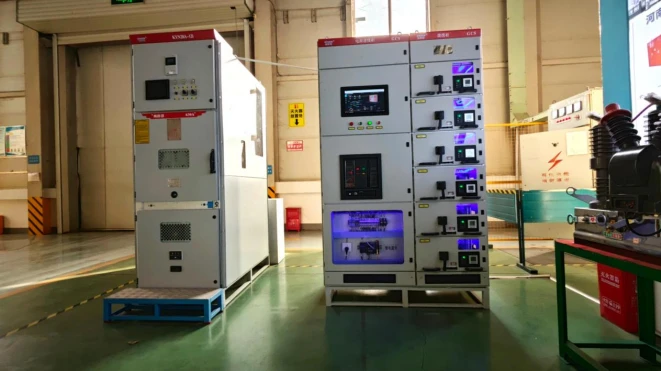

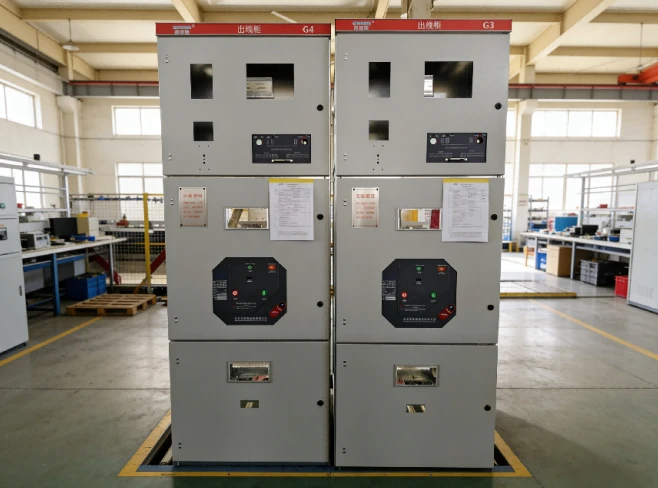

High and low voltage switchgear is an integrated control center of the power system, usually installed in the distribution room or substation. It is encapsulated in a metal cabinet and its main task is to receive, distribute, control and protect electrical energy.

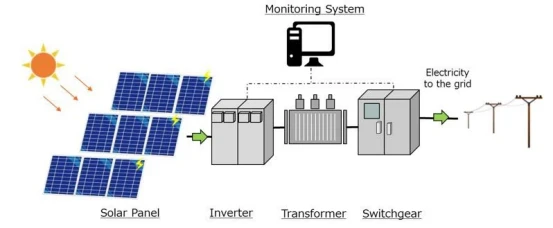

It is not a single equipment, but a complete power control system, including high-voltage switchgear, transformers, low-voltage switchgear and connecting buses, etc., to work together to ensure the safe transmission of power.

When the high-voltage electricity (usually more than 10kV) reaches the user, it first passes through the high-voltage switchgear to preliminarily control the current. The transformer then converts the high voltage into 380V/220V low-voltage electricity suitable for everyday use.

Finally, the low-voltage switchgear accurately distributes the processed low-voltage electricity to each power terminal to ensure that every socket and every device can obtain a stable and safe power supply.

02. Safety and security mechanism

The high and low voltage switchgear also has the function of fault protection. When the power system encounters dangerous conditions such as overload, short circuit, and voltage abnormality, it can respond within milliseconds:

When the circuit load exceeds the safety threshold, the circuit breaker will immediately trip, cutting off the power supply and preventing the wire from overheating and causing a fire; In the event of a short-circuit fault, the protection device in the device can sense the anomaly and isolate the fault area within 0.1 seconds. When the voltage fluctuates abnormally, the overvoltage and undervoltage protection mechanism will be activated to protect the precision equipment from power surges.

These protections are not simple switching actions, but monitor current, voltage, temperature and other parameters through sophisticated sensors, and cooperate with microprocessors for intelligent judgment to ensure accurate response at critical moments.

03. Key points for choosing different scenarios

Different places have unique requirements for high and low voltage switchgear. In the factory workshop, the equipment needs to cope with the working environment of high current and frequent start and stop, and the GCS type pull-out switchgear can be competent for tasks such as reactor current limiting and centralized motor control.

In commercial buildings, equipment needs to have intelligent management functions to support remote monitoring and energy consumption analysis; In the data center, high reliability and redundancy design are top priorities.

04. Buying Guide: Find the most suitable device in three steps

1. Look at parameter matching: According to the power load and site characteristics, select equipment with appropriate rated voltage, current and breaking capacity. For example, a low-voltage system in a general industrial site chooses a rated voltage of 660V, while a high-voltage system needs to consider a specification of 10kV or higher.

2. Pay attention to safety certification: Ensure that the equipment has passed national compulsory certification and industry standard testing, and the protection level meets the requirements of the installation environment.

3. Emphasize Ease of Maintenance: Prioritize products with modular designs, allowing for maintenance or replacement without affecting overall system operations, significantly reducing downtime.
